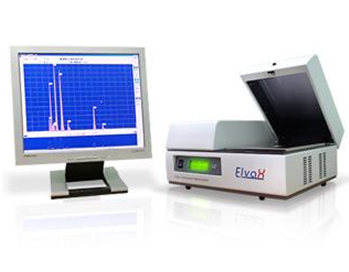

Máy phân tích thành phần vật liệu kim loại, hợp kim
Phạm vi ứng dụng
- RoHS & WEEE
- Metallurgy
- Medical diagnosis
- Ecological monitoring
- Customs and criminalistic expertise
- Archaeological studies
- Chemical industry
- Oil-refining industry
- Geology and mineralogy
- Food industry
- Scientific research
- máy phân tích thành phần vật liệu cầm tay
- Basic user specifications
| Element detection range | from Na (Z=11) to U (Z=92) |
| Data acquisition time | 3 – 100 s |
| Power supply | 90 - 240 V, 50/60 Hz |
| Power consumption | 40 W |
| Dimensions | 430 mm x 340 mm x 200 mm |
| Weight | 18 kg |
X-ray source
| X-ray tube | Rh anode 150 µm Be window air-cooling |
| X-ray generator | voltage: 4–50 kV, adjustable in 100 V steps current: 0–100 µA, adjustable in 0.2 µA steps maximal power: 5 W |
| Stability | 0.1% per 8 hours |
X-ray detector
| Detector type | solid state SDD with thermo-electrical cooling |
| Active area | 25 mm2 |
| Energy resolution | 140 eV at 5.9 keV (Fe55 isotope) |
| Be window thickness | 12 µm |
Spectrometric processor
| Pulse processor | digital pulse processor pile-up rejection pulse shape selector automatic adjustment to count rate |
| ADC | 4096 channels |
| Buffer RAM | 4096 32-bit channels |
| Timers | real and "live" time |
Software
| Supported operating systems | Windows XP/Vista/7 |
| Quantitative analysis algorithms | fundamental parameters quadratic stepwise multiple regression manual spectra comparison |
Options
| Built-in CCD Camera | 1.3 Mpixel |
| Autosampler | 8 positions, 32 mm diameter |
